Los indicadores, displays y densímetros son equipos diseñados para visualizar y procesar datos de medición de manera clara, precisa y en tiempo real. Funcionan como la interfaz entre los sensores y el usuario, permitiendo interpretar resultados críticos para el control de procesos, la verificación de parámetros y la trazabilidad de la información.

En Marllam contamos con una amplia variedad de marcas y modelos que se adaptan a diferentes entornos industriales y de laboratorio, asegurando que cada cliente disponga de la solución más adecuada para sus necesidades específicas.

Quality and Integrity are Part of Our DNA.

Over half a century, Lloyd Instruments has designed and built high quality materials testing instruments for companies all over the world. We strive to provide our customers the very best user experience, and take| pride in working with each one to help tailor testing solutions to meet their specific needs.

To ensure you receive an accurate, reliable instrument of the highest quality, Lloyd Instruments test machines are designed and handcrafted at our factories in the United States in accordance with ISO 9001. The test machines are CE certified and supported by our global service centres in accordance to ISO 17025.

Quality and integrity are part of our DNA, and we would like to help make it a part of yours as well.

A Complete Testing Solution

The LD Series offers a complete testing solution. Extensive support after the purchase guarantees that you will have a working partner for as long as you own the instrument. With a testing solution from Lloyd Instruments you will get:

• Quality products

• Accuracy and consistency in your test results

• Flexibility to amend your machine to match new needs

• Adherent to international test methods such as ASTM and ISO

• Full range of grips, fixtures, safety shields and thermal chambers for all types of applications|

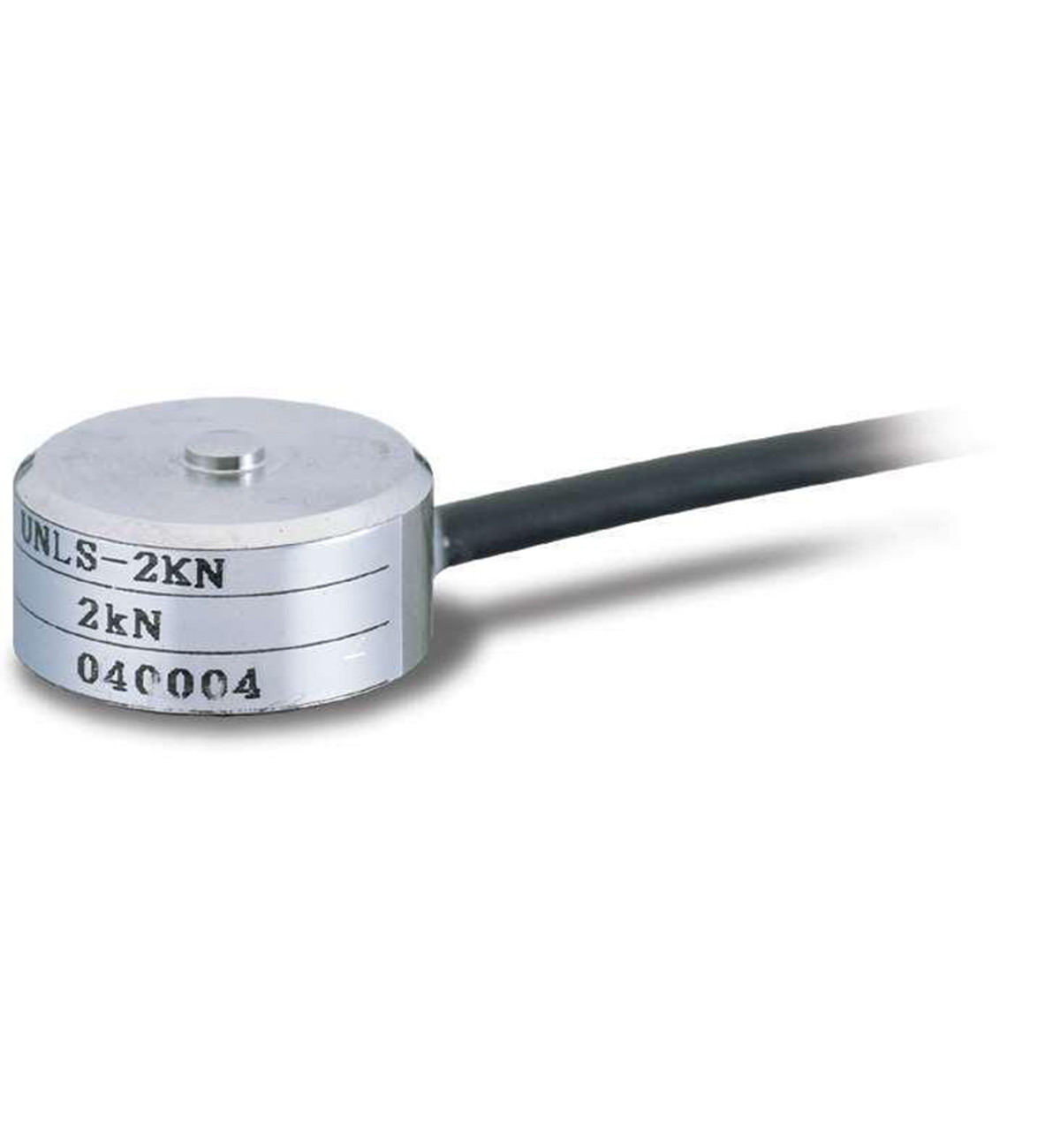

En Marllam, ofrecemos una variedad de celdas de carga de alta calidad para medir fuerzas de tensión y compresión. Disponibles en diferentes diseños, estas celdas son ideales para aplicaciones que requieren precisión.

¿No está seguro de qué celda de carga necesita?

Nuestro equipo técnico está listo para asesorarle. Podemos ayudarle a identificar la celda de carga ideal para su stand de prueba o aplicación específica.

Contáctenos para recibir ayuda experta en Celdas de Carga.

Precision in Performance:
In the world of material science and engineering, accurate and reliable testing is paramount to ensuring product safety, quality, and performance. The LSPlus Series universal testing machines from Lloyd Instruments are designed to excel in this crucial domain, offering a range of benefits that empower customers to conduct comprehensive material testing with ease.

Series 2 digital force gauges are designed for basic tension and compression forcetesting applications up to 500 lbF (2,500 N). Peak tension and compression readingsare reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. Abacklit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversiblealuminum housing allows for hand held use or fixture mounting, rugged enough forapplications in both production and laboratory environments. Series 2 gauges are directlycompatible with Mark-10 test stands and grips.

Series 3 digital force gauges are designed for tension and compression force testing in numerousapplications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of2,000 Hz, producing accurate results under a wide range of testconditions. A backlit graphic LCD displays large characters, and amenu is available to access the gauges’ features and configurableparameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gaugesare overload protected to 200% of capacity, and an analog loadbar is shown on the display for graphical representation ofapplied force.

An ergonomic, reversible aluminum housing allows for handheld use or test stand mounting for moresophisticated testing requirements. Series 3digital force gauges are directly compatiblewith Mark-10 test stands, grips, and software.

Series 3 gauges include MESUR® Lite dataacquisition software, for tabulation of continuousor individual data points. One-click exportto Excel button easily allows for further datamanipulation.

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 50 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

Series 4 gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel button easily allows for further data manipulation.

Series 5 advanced digital force gauges are designed for tension andcompression force testing in numerous applications across virtuallyevery industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500N). The gauges feature an industry-leading sampling rate of 7,000 Hz,producing accurate results even for quick-action tests. A large, backlitgraphics LCD displays large, legible characters, while the simplemenu navigation allows for quick access to the gauges’ many featuresand configurable parameters. Data can be transferred to a PC or datacollectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as arestatistical calculations with output to a PC. Integrated set points withindicators and outputs are ideal for pass-fail testing and for triggeringexternal devices such as an alarm, relay, or test stand. The gauges areoverload protected to 200% of capacity, and an analog load bar is shownon the display for graphical representation of applied force.

The Series 5’s averaging mode addresses the need to record theaverage force over time, useful in applications such as peel testing,while external trigger mode makes switch activation testing simple andaccurate. An ergonomic, reversible aluminum design allows for hand held use or teststand mounting for more sophisticated testing requirements. Series 5 force gaugesare directly compatible with Mark-10 test stands, grips, and software.

Series 5 gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulatescontinuous or single point data from Series 5 gauges. Data saved in the gauge’s memorycan also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

The M7I professional digital force / torque indicator is designed to work with a wide range of Mark-10 remoteforce and torque sensors (see page 4). With exclusive Plug & Test® technology, all calibration and configurationdata is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. Inaddition, all sensors are fully compatible with other Mark-10 indicators.

The M7I features an industry-leading sampling rate of 14,000 Hz, producing reliable results for extremelyquick-action tests. In addition to the M5I indicator’s functions, the M7I features high speed continuous datacapture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The M7Ialso features programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Coefficient offriction unit of measurement and a user-defined unit of measurement add flexibility for specialized applications.For productivity enhancement, the indicator also features automatic dataoutput, data storage, and zeroing functionsupon the completion of break detection,averaging, external trigger, and 1st / 2ndpeak detection.

The M7I interfaces with Mark-10 teststands to permit functions such as breaktesting, dynamic load holding, PC controlcapability, and more. The included MESUR®Lite data acquisition software tabulatescontinuous or single point data. Datasaved in the indicator’s memory can alsobe downloaded in bulk. One-click exportto Excel easily allows for further datamanipulation.

Los microscopios y sistemas de visión representan soluciones ópticas avanzadas que permiten realizar inspecciones detalladas, análisis dimensional y control visual automatizado con altos niveles de precisión y confiabilidad. Estos equipos son esenciales en entornos donde la calidad, el detalle y la trazabilidad de la información visual son factores críticos.

En Marllam ofrecemos un portafolio amplio con diferentes marcas, modelos y configuraciones, lo que nos permite adaptarnos a los requerimientos de cada cliente, desde aplicaciones educativas y de investigación hasta procesos industriales de alta especialización.

Material Test Frames – Dual Column

The MMD Series are dual column, table-top testing systems operated using our L3 Material Test software. These systems are ideal for a variety of applications including plastics, composites, metals, rubber, automotive/aerospace components, medical devices, adhesives, foams, film and more. Perform tensile, compressive, cyclic, flexural, shear and other types of testing. Three model load capacities are available: 10kN, 30kN and 50kN. Testers feature a granite base with all-metal columns and pre-loaded ball screws for excellent extension control and precision measurements. Magnetic travel limits are adjustable to prevent over travel situations. Testers are inherently stiff and we include stiffness compensation correction to eliminate all errors due to mechanical deflection in the entire load string. Communications to the all-in-one touchscreen desktop computer is via USB. Frames feature digital and analog I/O and support for two extensometers. Data sampling is selectable between 1-2000Hz. MMD test frames may use ULC, MLC or FLC load cell sensors. Sensors are IEEE 1451.4 compliant. Frames may be fitted with optional splinter shield.

Material Testers – Single Column

The MMS Series are single column, table-top testing systems operated using our L3 Material Test software. These systems are ideal for a variety of applications including plastics, composites, metals, rubber, automotive/aerospace components, medical devices, adhesives, foams, film and more. Perform tensile, compressive, cyclic, flexural, shear and other types of testing.

Four model load capacities are available: 500N, 1kN, 2.5kN and 5kN. Testers feature a granite base with all-metal column and pre-loaded ball screws for excellent extension control and precision measurements. Magnetic travel limits are adjustable to prevent over travel situations. Testers are inherently stiff and we include stiffness compensation correction to eliminate all errors due to mechanical deflection in the entire load string.

Communications to the all-in-one touchscreen desktop computer is via USB. Frames feature digital and analog I/O and support for two extensometers. Data sampling is selectable between 1–2000Hz. MMS test frames may use ULC, MLC or FLC load cell sensors. Sensors are IEEE 1451.4 compliant. Frames may be fitted with optional splinter shield.
