The Chatillon MT Series manual test stand is a flexible, easy-to-use solution for force measurement. It comes in two versions: the MT150 and the MT500.

This manual test stand is ideal for tensile testing, compression testing, peel, and flexural testing.

The MT Series manual test stands are often used with the DF Series digital force gauges to check the force necessary to depress a button, or with the LG/DG mechanical gauge to perform low range pull tests at the end of a production line where caps are placed on spray bottles. These test stands are commonly used to test the force in the Packaging Industry as for folding cardboard boxes into shape.

The MT Series test stand comes with:

• a hook

• compression plate

• threaded and eye end type adapters

Gauge mounting hardware is optiona

MTH Manual Tester

The MTH Manual Tester is a single column, manually-operated force tester. The MTH has a load measurement capacity of 550 lbf (2500N, 250 kgf) and can be used for compression or tensile testing.

The mechanical advantage afforded by the MTH-550’s precision, high-resolution worm gear design lets you test effortlessly. One rotation of the hand wheel positions the crosshead 0.03″ (0.75mm). Total stroke for the MTH-550 is 4″ (102mm). Force measurement is performed using a Starrett digital force gage.

The MTH-550 is an ideal, affordable solution for spring testing. Fit the MTH-550 with a digital force gage and optional digital scale to determine spring rates, initial tension and more.

The hand wheel may be positioned anywhere along the 30″ (762mm) column, and with a 4″ (102mm) throat, large samples can be accurately tested. The base may be permanently affixed to your workbench. Optional gage adapter kits are available for use with non-Starrett force gages. Quick-change clevis adapters let you mount a large selection of Starrett testing fixtures.

MTL-110

The MTL-110 can measure force up to 110lbf (500N, 50kgf). This tester is ideal for component testing and its compact design fits small work spaces. The MTL-110 has a 6″ (152mm) stroke. The tester’s quick-action lever moves the rack and pinion crosshead 3″ (76mm) per revolution. The lever may be positioned anywhere along the 20″ (508mm) column, and with a 6″ (152mm) throat, large samples can be accurately tested. Options include a digital scale for measuring deflection distance. The base adapter adjusts to accommodate different gage models.

The MTL may be equipped with optional legs so that you can test in a horizontal position.

MTL-330

The MTL-330 can measure force up to 330lbf (1500N, 150kgf). This tester can be used for tensile and compression testing applications, and is ideal for spring testing. Fit the MTL-330 with a Starrett digital force gage and optional digital scale to determine spring rates, initial tension and more. The MTL-330 can be easily mounted to your workbench for secure testing.

Like the smaller MTL-110, the quick-action lever moves the rack and pinion crosshead 3″ (76mm) per revolution. The lever may be positioned anywhere on the 30″ (762mm) column, and with a 4″ (102mm) throat, large samples can be accurately tested. Optional gage adapter kits are available for use with non-Starrett force gages.

The MTL may be equipped with optional legs so that you can test in a horizontal position.

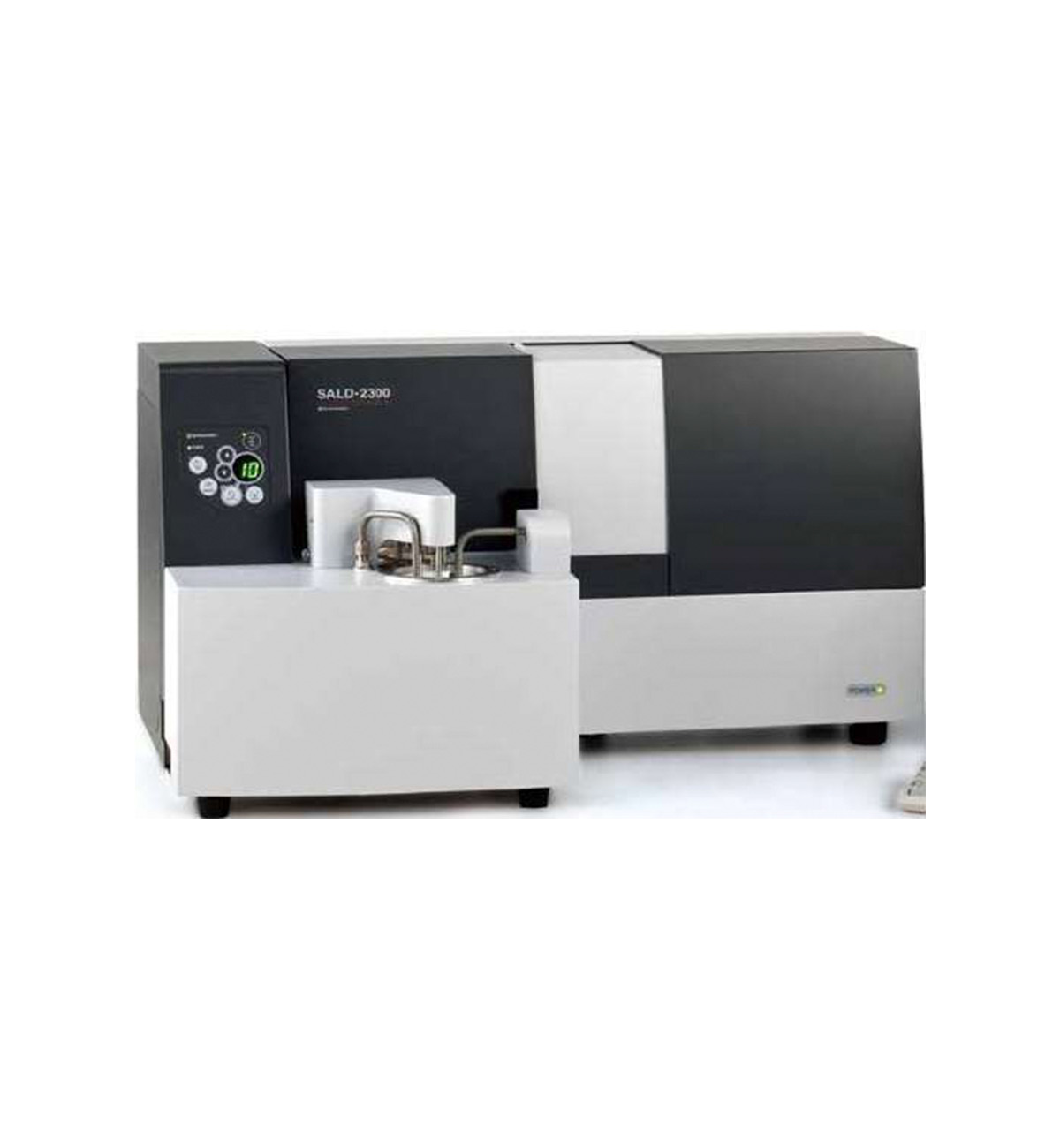

Laser Diffraction Particle Size Analysis?

Particle size distribution can be calculated using the light intensity distribution pattern of scattered light which is generated from sample particles when laser irradiates them.
This is the main particle size analysis method because it has excellent properties such as a wide measurement range, a short measurement time, and the ability to measure both wet and dry samples.
Please refer to page 19 for the measurement principle.

Series F Tension / Compression Test Frames

Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbf (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, view results, and export data via the integrated EasyMESUR® control panel. Satisfy various test methods through an easy-to-use interface, with a menu of available optional functions and function packages. The system can be tailored to your unique needs and budget, and is easily upgradeable in the field.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

Force Measurement Re-imagined

Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbf (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbf (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator.

A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).

A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.

Equipos que permiten evaluar la nitidez de bordes o filos en piezas metálicas, herramientas y cuchillas.

• Garantizan seguridad y funcionalidad en productos que requieren filo preciso.
• Modelos portátiles y de laboratorio para pruebas rápidas y confiables.
• Utilizados en industrias de corte, herramientas, envases metálicos y plásticos.

Dispositivos diseñados para evaluar la textura y acabado superficial de piezas y componentes.

• Miden parámetros como Ra, Rz, Rt, entre otros.
• Permiten verificar que los acabados cumplan con las especificaciones técnicas requeridas.
• Amplia aplicación en mecanizado, manufactura de moldes, automotriz y aeroespacial.

Intuitive Effectiveness

The motorized TCM Series from Chatillon offers fast and effective force testing at an affordable price.

The TCM Series features a high frame stiffness, light weight bench top design suitable for both production and laboratory environments.

Force ranges of 100 lbf (500 N) and 350 lbf (1500 N) are available in both 16 in (406 mm) and extended 32 in (812 mm) travel versions.

Select from Chatillon’s wide range of grips and fixtures to use the TCM Series for a wide variety of tests such as:

• Tension

• Compression

• Bending

• Peeling

• Adhesion

• Insertion and extraction

En Marllam ofrecemos medidores de espesor de recubrimiento con detección automática del sustrato. Estas herramientas permiten realizar mediciones no destructivas, con precisión en segundos — una ventaja significativa para optimizar tiempos, proteger sus inversiones y evitar pérdidas innecesarias.

Algunas aplicaciones destacadas para estos equipos incluyen:

• Verificación rápida del espesor de recubrimiento en piezas automotrices.
• Aseguramiento del cumplimiento de estándares de calidad en componentes industriales.
• Inspecciones de seguros que requieren datos exactos para ajustes o reclamaciones.
• Control riguroso de acabados en acero o aluminio durante procesos de refinado o repintado.

Dispositivos diseñados para medir la fuerza de torsión aplicada a piezas, tornillos, tuercas y ensamblajes.

• Garantizan que los componentes cumplan con especificaciones de ensamble y seguridad.
• Versiones portátiles y de laboratorio, digitales y analógicas.
• Aplicaciones en industrias automotriz, aeroespacial, fabricación de maquinaria y control de ensamblajes.

¿No está seguro que equipo se adapta a sus necesidades?
Consulte con uno de nuestros especialistas para recibir asesoría personalizada. Le ayudaremos a comparar opciones, comprender capacidades y tomar la mejor decisión.

Hable con un especialista de producto
